Bradley’s VDC-Assist (Virtual Design & Construction Assistance) guide features Starter Kits architects can use to jump-start projects. The comprehensive kits include accessible restroom & locker room layouts in 3D or 2D format to easily copy/paste into your projects’ design software.

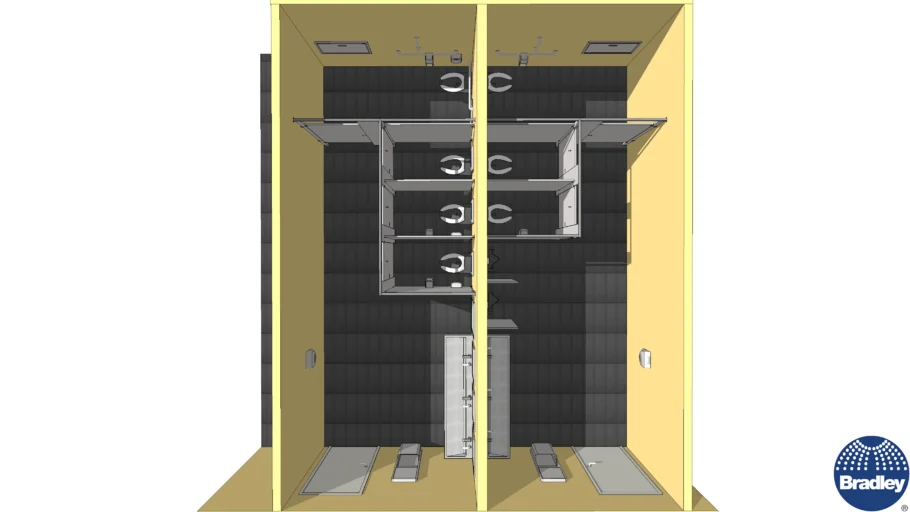

Each starter kit includes fully-dimensioned accessible floor plans, elevations, sections, 3D views with both fixture and washroom accessory schedules, plus Autodesk Revit (3D *.rvt files), Autodesk AutoCAD (2D *.dwg files) and PDFs. Use the PDF documents as reference guides to ADA and accessible design standards for installation heights and clearances. Installed height ranges are dimensioned in both floor plan, elevation and section views. 3D views enhance the designers’ understanding of installed products within the layout.
