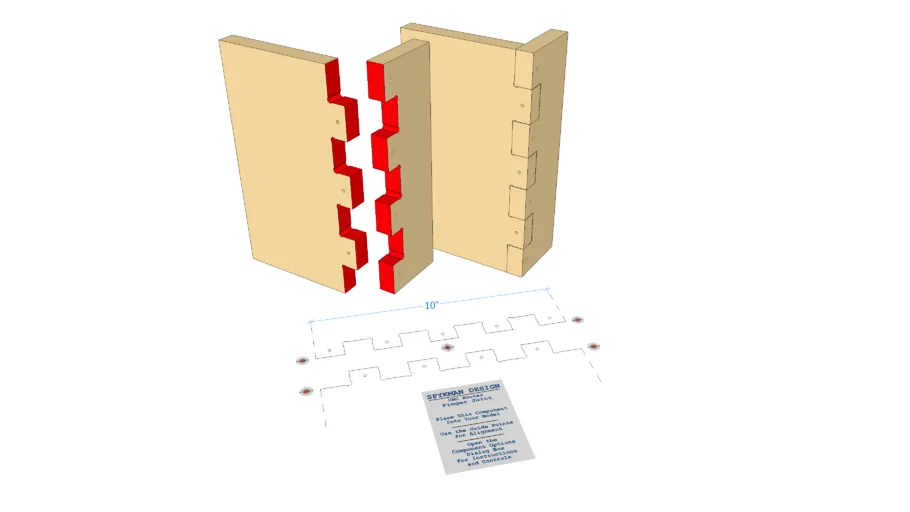

This file contains a Dynamic Component to create both halves of a Finger Joint. It is used for joining two panels at 90° for an outside corner. It is easily and rapidly customizable in all dimensions using the Component Options dialog box. It also includes adjustable clearance in the joint line.
Incorporate the two halves of this joint into your model to create a drawing for DXF export to CAD software such as Vectric.
