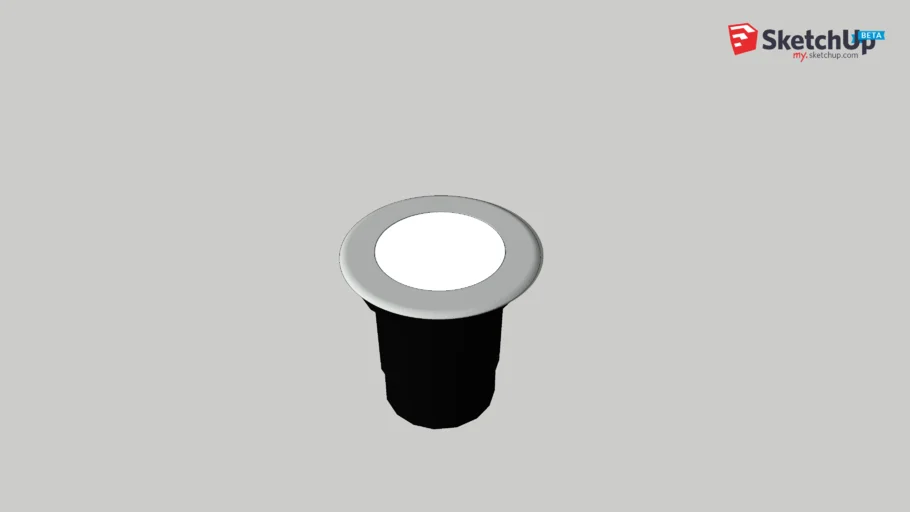

CEILING RECESSED MOUNTED
ZIP DOWNLIGHT ROUND DIGITAL BEAM
S.5566W
1 module COB 3000K 48Vdc DIMMABLE DALI
Rated module luminous flux:: 1360lm
Rated luminaire luminous flux: : 909lm
Rated module power: : 12.8W
Rated luminaire power: : 16.4W
Luminaire efficacy: : 55lm/W
Voltage (DC):
See the SIMES power supply accessories list on the following pages: 48Vdc
Dimmable: : DALI
Electrical insulation class: : III
Protection class IP: : IP65
Mechanical resistance: : IK09
CE
LUMINAIRE TYPE
False ceiling-recessed down-light fitting. Recessing depth 215 mm. IP rating IP 65
