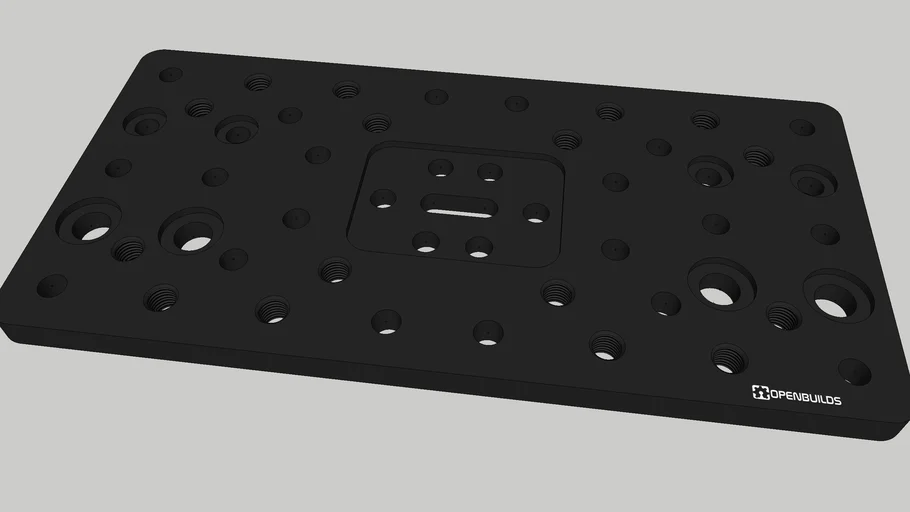

Expanding on the popular C-Beam gantry plate, this double wide version can host up to 8 Mini V Wheels for an exceptionally stable gantry. Elongated to provide even more mounting surface. Professionally milled including countersunk and tapped holes.
Product Features
Extra long
C-Beam and V-Slot 20x80mm compatible
Countersunk holes
Tapped holes
Center recess
Multiple mounting configurations
What is Included
(1) C-Beam Gantry Plate – Double Wide
Product Specifications
Size: 155 x 75mm
Thickness: 6mm
Material: 6061 – T5 Aluminum
Finish: Brushed and anodized
Color: Black
Ultimate tensile strength of at least 190 MPa (28,000 psi)
