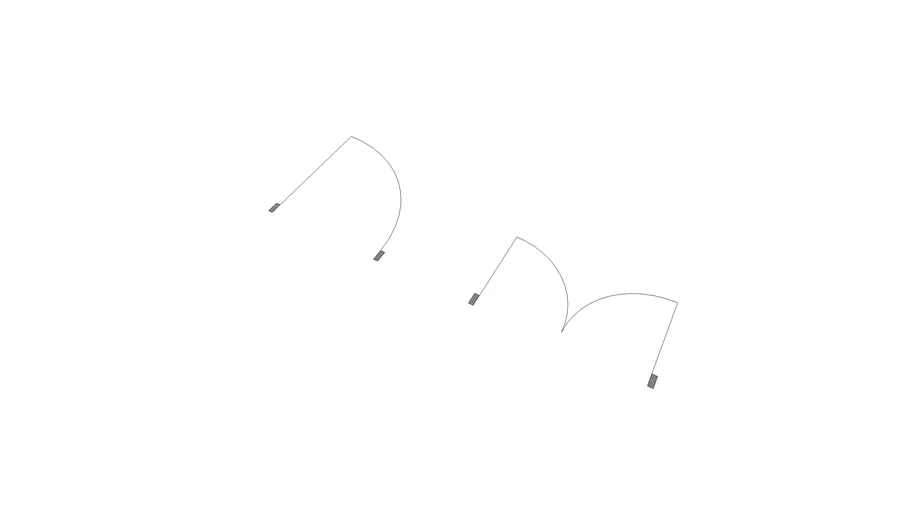

Simple 2d single and double door swing plan symbols that can be dynamically adjusted for the door opening size using the scale command. Jamb dimensions and door width are also adjustable thru component options if needed..
I use these for creating simple 2D floor plans for plan illustrations
Note: explode on download to access the individual DC doors
