Not pretty but it works; replacement for stuffed pedal.
Setting potentiometer position: Released ~24kΩ (or open-circuit), pressed ~400Ω (or short-circuit).
Rough video of a slightly older build at the link.

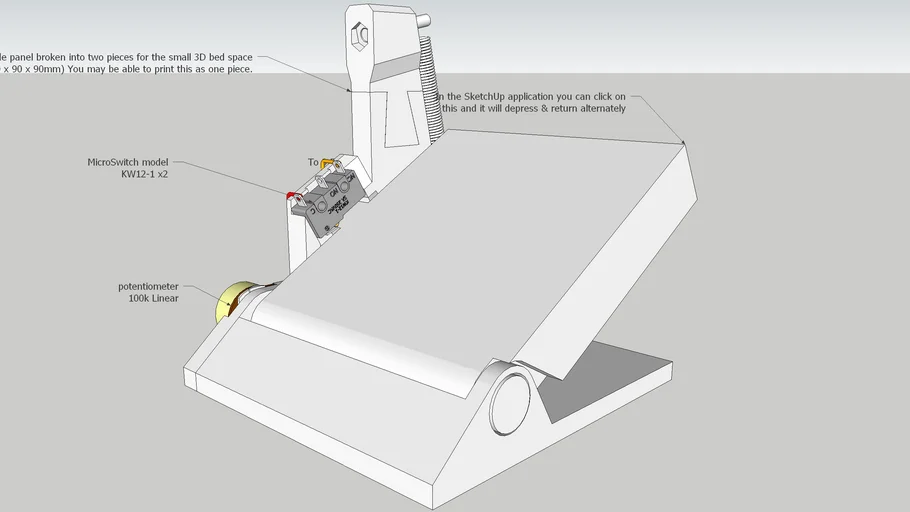

It's a dynamic component so if you're in the SketchUp app you can "Tools" --> "Interact" click the pedal.
