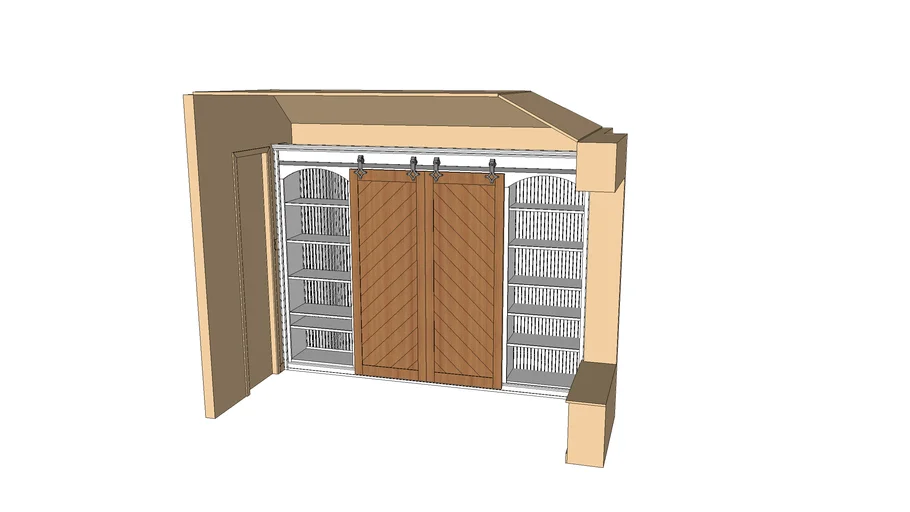

Murphy Bed. Complete plans to build a Murphy Bed wall. I built this unit into a home, partial room shown. Slide the doors left and right (red axis) 32 inches to reveal the bed. Near the lower left side of the bed frame there's a red circle. Select that and rotate the bed 90 degrees.
The unit was painted white. I left the model with default color so you can color it your self.
Each piece is a component (suitable for "CutList") if you want to do a material take-off and build one yourself. Materials are 3/4 Maple plywood (paint grade), poplar for the top face and shelf edge facing, crown molding. Shelf backs are 1/4" bead board. Doors are 1/2" MDF faced with 3/4 white oak frame. The facing (angled boards) are hardwood flooring. Murphy bed frame kit was purchased from "Rockler Woodworking and Hardware". Barn door rail from Amazon (there are many available). #murphy_bed # shelves #barn_door #sliding_door #cabinet
