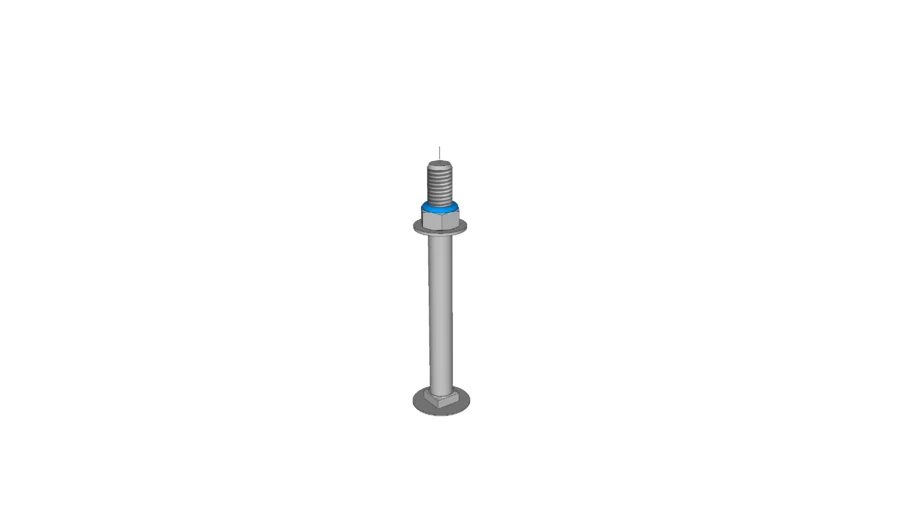

Bolt Size: 1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1"
Bolt Lenght: 1" and more.
Nut Offset (part thickness) 0" and more.
Head Type: HEX, Carriage
Nut Type (with washer): HEX, HEX Nylon, WingNut, None
There is 1" of fixed thread at the tip of the bolt. It's a material so the model is medium resolution.
There is an internal center core line so you can snap the center of the bolt. You can also use that line in Xray mode to position the center of the bolt.
Layer 0, 3 materials used, cleaned component name list. No group, only components.
Enjoy!
