FEATURES

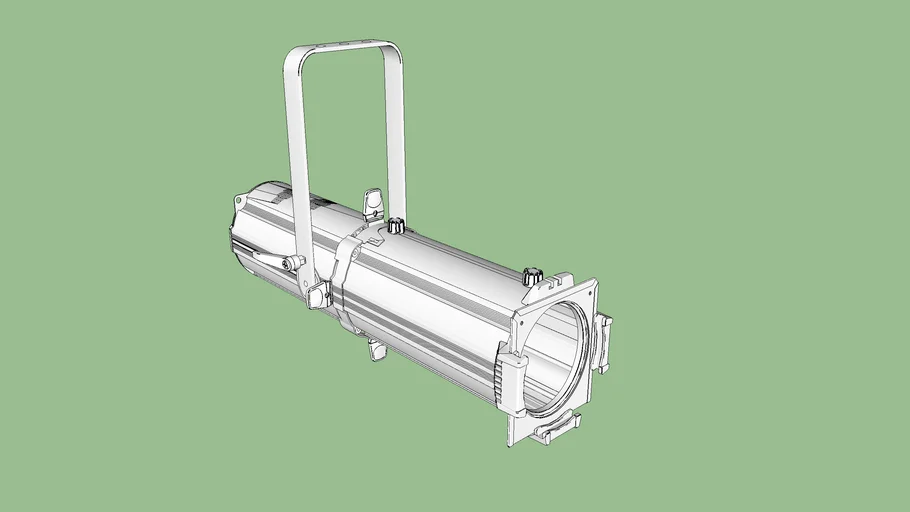

•LED Ellipsoidal shines a hard-edged, warm white spot in any direction
•Easily highlight areas by altering the projected beam with framing shutters
•Flexibility to project from any distance using the manual zoom
•Includes holders for glass and steel gobos and a gel frame
•Save time running extension cords by power linking multiple units
•Eliminate the need for DMX control with standalone operation
USA SPECIFICATIONS
•DMX Channels: 1 or 3
•DMX Connectors: 3-pin XLR
•Gobo Size: M (66 mm outside, 48 mm image, 2 mm max thickness)
•Accessory Holder/Gel Frame Size: 6.3 x 6.3 in (160 x 160 mm) /6.24 x 6.24 Ø5.4 in (158.5 x 158.5 Ø137mm)
•Light Source: 1 LED (warm white) 100 W (2.3 A), 50,000 hours life expectancy
•Color Temperature: 3500 K
•Strobe Rate: 0 to 30 Hz
•PWM Frequency: 1,200 Hz (web only-not for printed materials)
•Zoom Angle (manual): 14° to 30°
•Illuminance: (14°): 15,100 lux @ 2 m
•Illuminance: (30°): 3,800 lux @ 2 m
•Power Linking: 9 units @ 120 V; 16 units @ 230 V
•Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
•Power and Current: 106 W, 0.9 A @ 120 V, 60 Hz
•Power and Current: 103 W, 0.5 A @ 230 V, 50 Hz
•Weight: 12.6 lb (5.7 kg)
•Size: 24 x 7.2 x 16.9 in (611 x 183 x 430 mm)
•Approvals: CE, MET
