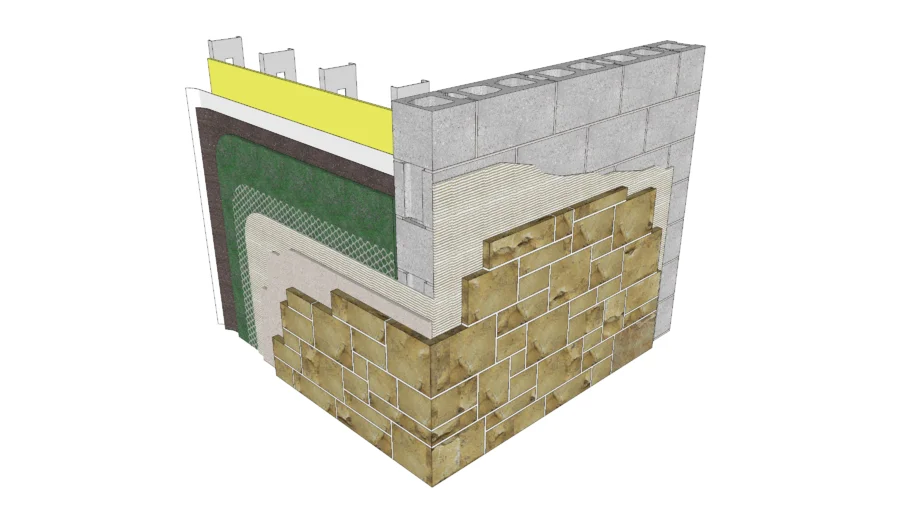

IMI Detail 03.070.2101. This adhered veneer detail shows two conditions: thin stone veneer at studs and sheathing backup, and thin stone veneer at CMU backup. The sheathing backup has two layers of weather resistive barrier (WRB), and a full-height drainage insert. The CMU backup is suitable for a direct-applied adhered veneer.
This detail is intended for the use of industry professionals who are competent to evaluate the significance and limitations of the information provided herein. This detail should not be used as the sole guide for masonry design and construction, and IMI disclaims any and all legal responsibility for the consequences of applying the information.
