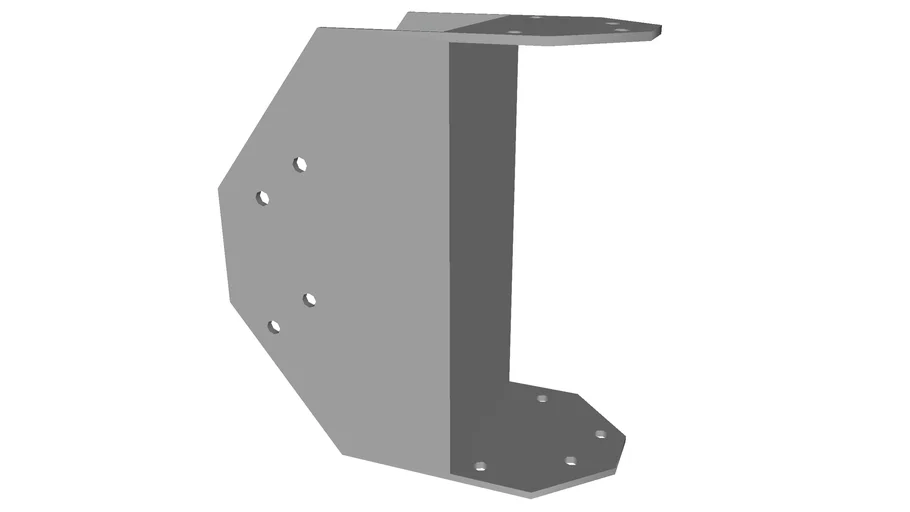

Simpson HS24 Connector - Detailed

Simpson HS24 Connector - Detailed

SketchUp
Steel connector for connecting a wooden rafter to a double top plate by resting on top plate and connecting to both sides of rafter. #architecture #bracket #connections #connector #construction #metal #Steel #wood
