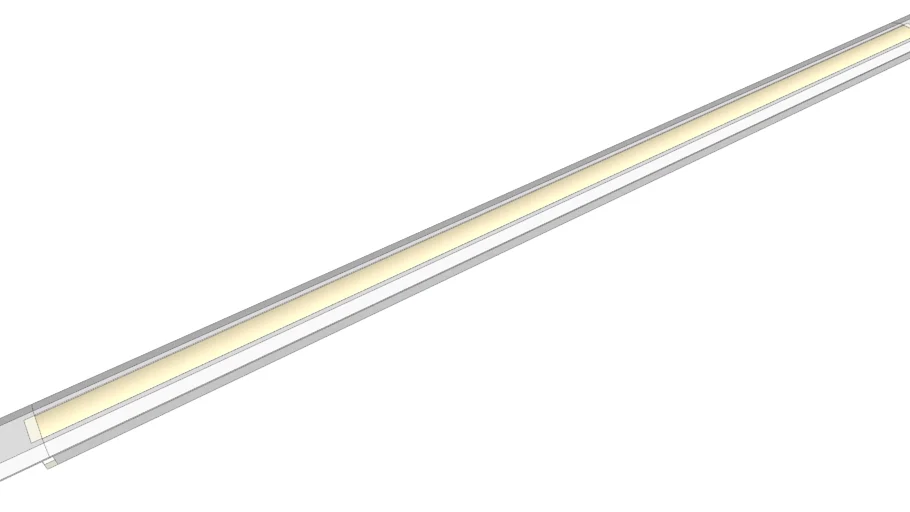

Millwork Light Channel features 24 volt Soft Strip inside a slim, paintable aluminum extrusion that recesses into wood (minimum 3/4" thick). LCMW uses SS2P with warm white, high CRI (80+) LEDs for excellent color rendering. LCMWC uses SS2C with 85+ or 95+CRI LEDs. The 61 degree white diffuser lens projects a clean line of light and eliminates LED dots, while the clear lens provides maximum light levels. System consumes 2.3 or 2.5 watts per foot and is sold in 12 inch increments up to 120 inches. May be ordered in 3, 5, 8 or 10 inch increments. Fixtures include 4 spring clips per foot and can be linked with plug-in flexible connectors for a maximum of 40 feet. Powered by dimmable remote power supply.
Finishes:
Satin Aluminum, Antique Bronze and White. Custom finishes available
Applications
Indoor Only - Task lighting, under/above cabinet, cove, retail, closets. Light Channel is identified for use in the storage area of a closet per NEC Article 410.16(A)(3) and 410.16(C)(5). Fixture is ETL listed for dry location for closet use with clothing and complies with UL Standard 2108.
